Precision CNC Machining

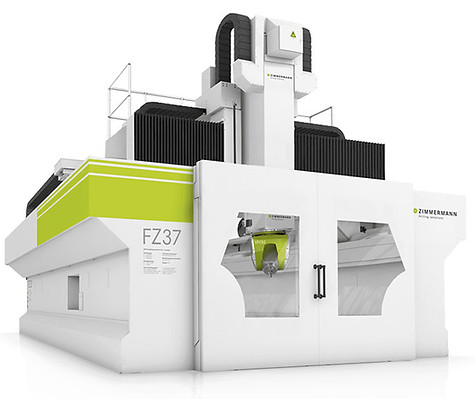

Zimmermann FZ37 (2 Units)
5 Axis CNC Gantry Mill
Max. Rating 160hp, Max. Speed: 30,000 RPM
Working Envelope: 196” X-Axis, 98” Y-Axis, 49” Z-Axis
Working Envelope: 10 x 15 x 4 ft
Machining tolerance of ±0.0007 in
Okuma MB-5000H
5-Axis Horizontal Machining Center
Dual Rotary Pallet
Max. Rating: 35hp
Max. Speed: 15,000 RPM
Working Envelope: 30” X-Axis, 30” Y-Axis, 32” Z-Axis
DMS Redwood5
5 Axis CNC Router
Handles a wide range of non-ferrous materials
Heavy-duty, large-scale machine
Working Envelope: 10 x 15 x 4 ft
Machining tolerance of ±0.002 in
Haas ST-20Y
Chuck Size: 8.3 in / 210 mm
Max Part Swing: 21.0 in / 533 mm
Max Cutting Diameter (with BMT65 turret): 11.75 in / 298 mm
Max Cutting Length (varies with workholding): 22.5 in / 572 mm
Bar Capacity: 2.50 in / 64 mm
Haas ST-30
Chuck Size: 8.3 in / 210 mm
Max Part Swing: 21.0 in / 533 mm
Max Cutting Diameter (with BMT65 turret): 11.75 in / 298 mm
Max Cutting Length (varies with workholding): 22.5 in / 572 mm
Bar Capacity: 2.50 in / 64 mm
Haas VF-7
3-Axis Mill,
Tool Capacity: 30+1
Tool Probe Capability
Max. Rating: 30hp
Max. Speed: 8,100 RPM
Working Envelope: 84” X-Axis, 32” Y-Axis, 30” Z-Axis
Haas VF-4
3-axis Mill with Added Turn Table (4th-axis)
20-Tool Holder Cap. with Tool Probe Capability
Max. Rating: 30hp
Max. Speed: 8,100 RPM
Working Envelope: 50” X-Axis, 20” Y-Axis, 25” Z-Axis
Haas VF-2
3-axis Mill, 20-Tool Holder Cap. with Tool Probe Capability
Max. Rating: 30hp
Max. Speed: 8,100 RPM
Working Envelope: 30” X-Axis, 16” Y-Axis, 20” Z-Axis
Haas Super Mini Mill
3-Axis Mill, 10-Tool Holder Cap. with Tool Probe Capability
Max. Rating: 15hp
Max. Speed: 10,000 RPM
Working Envelope: 16” X-Axis, 14” Y-Axis, 15” Z-Axis
